Music Audio Visualizer

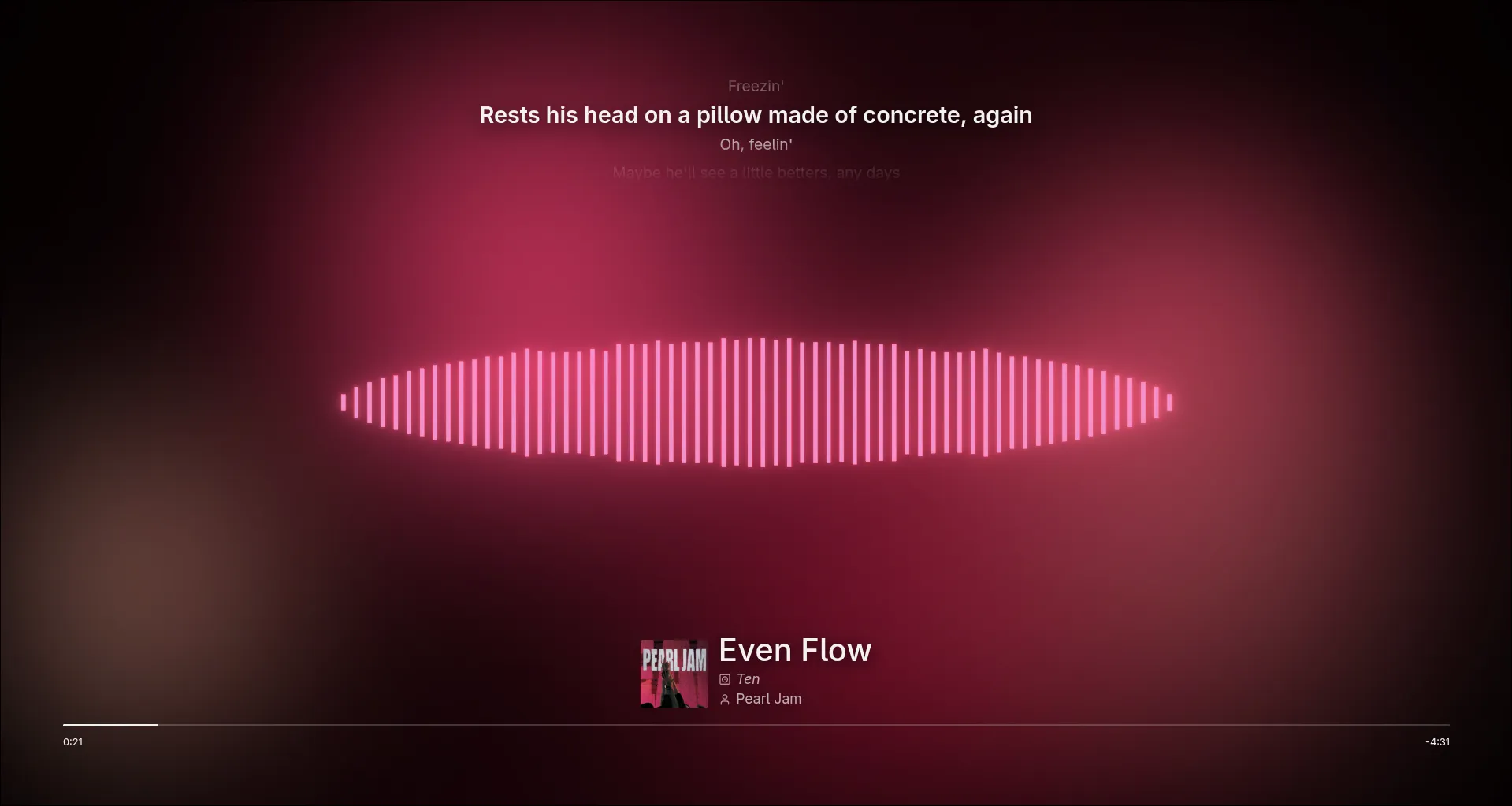

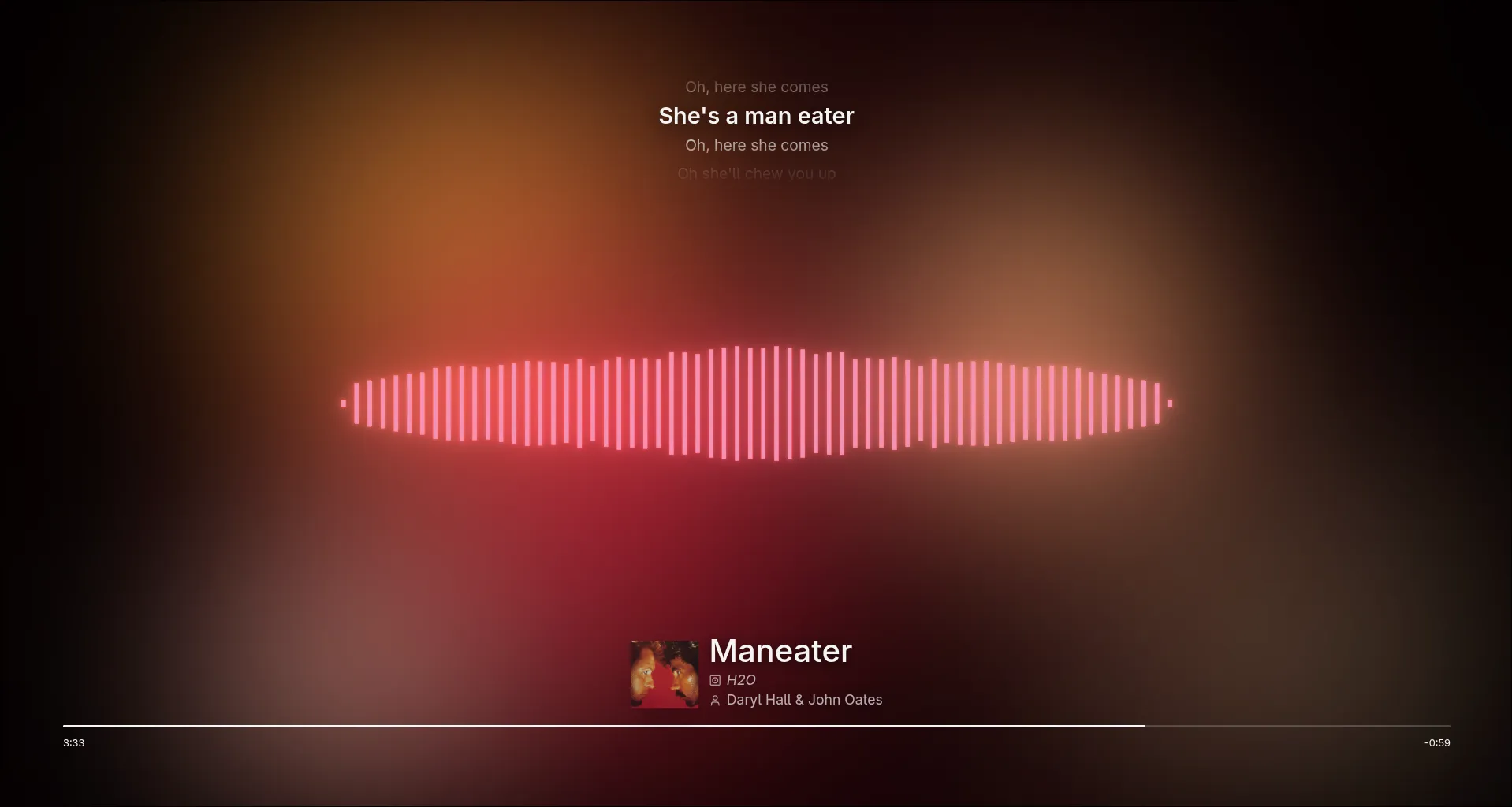

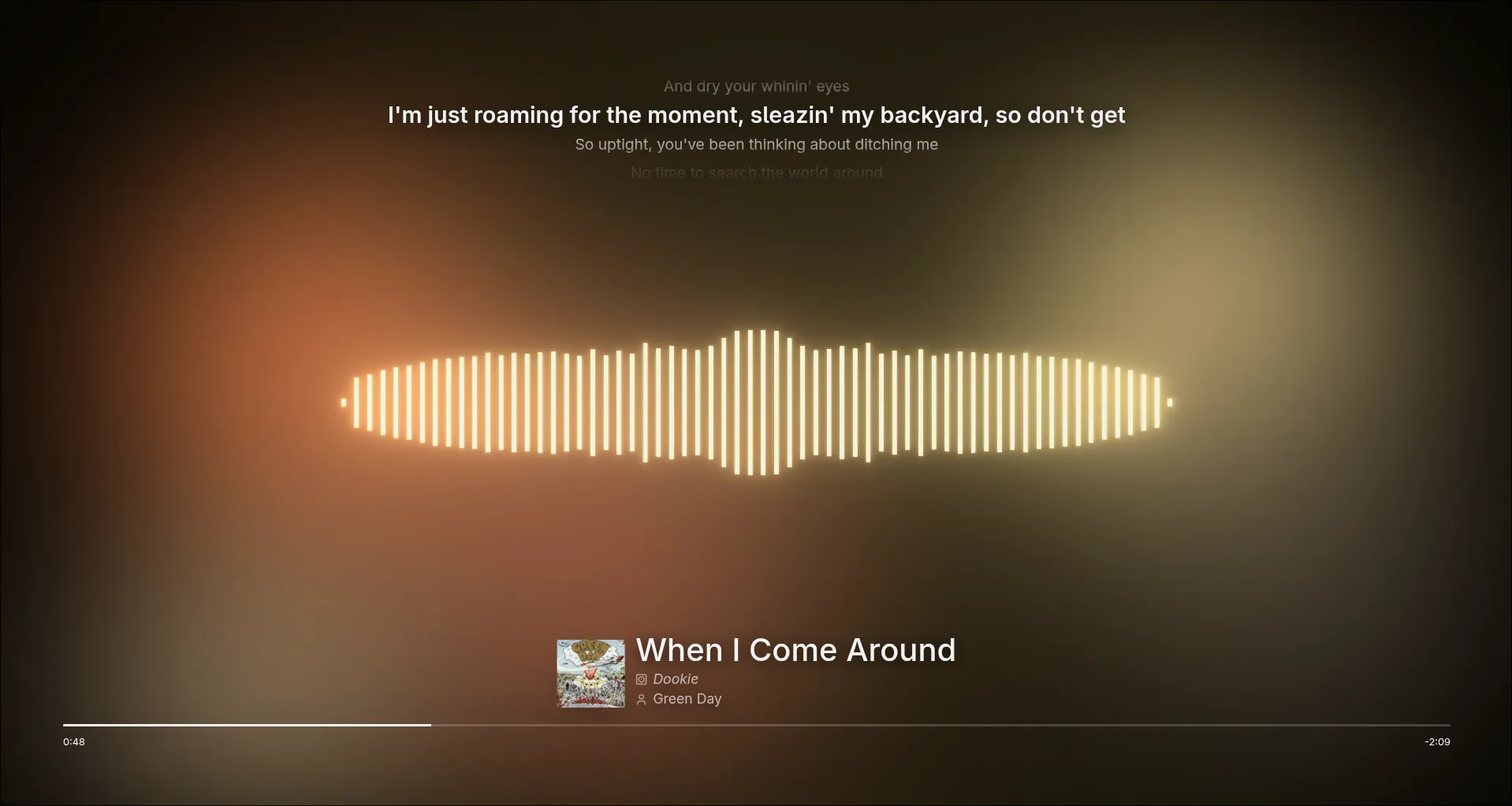

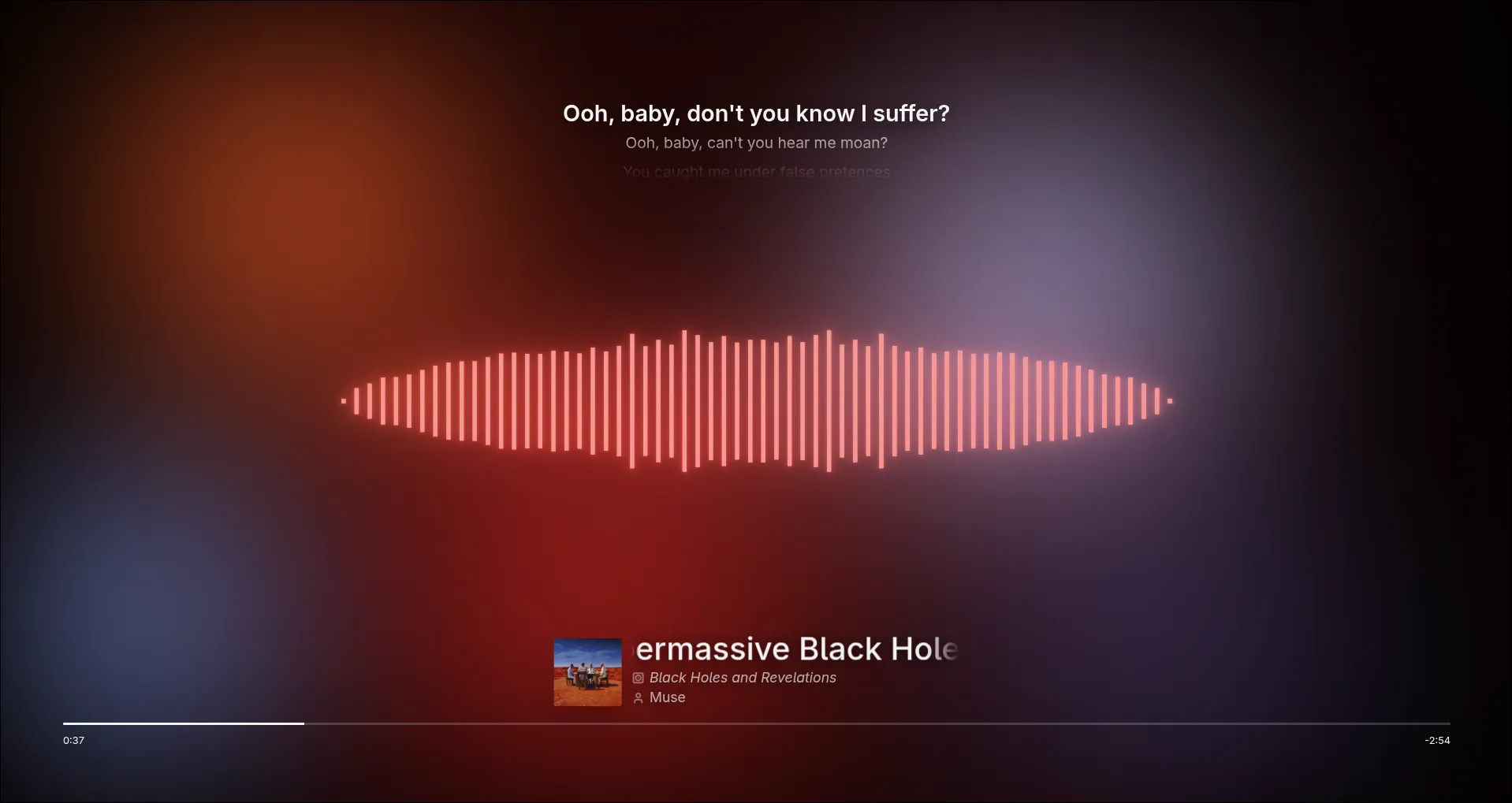

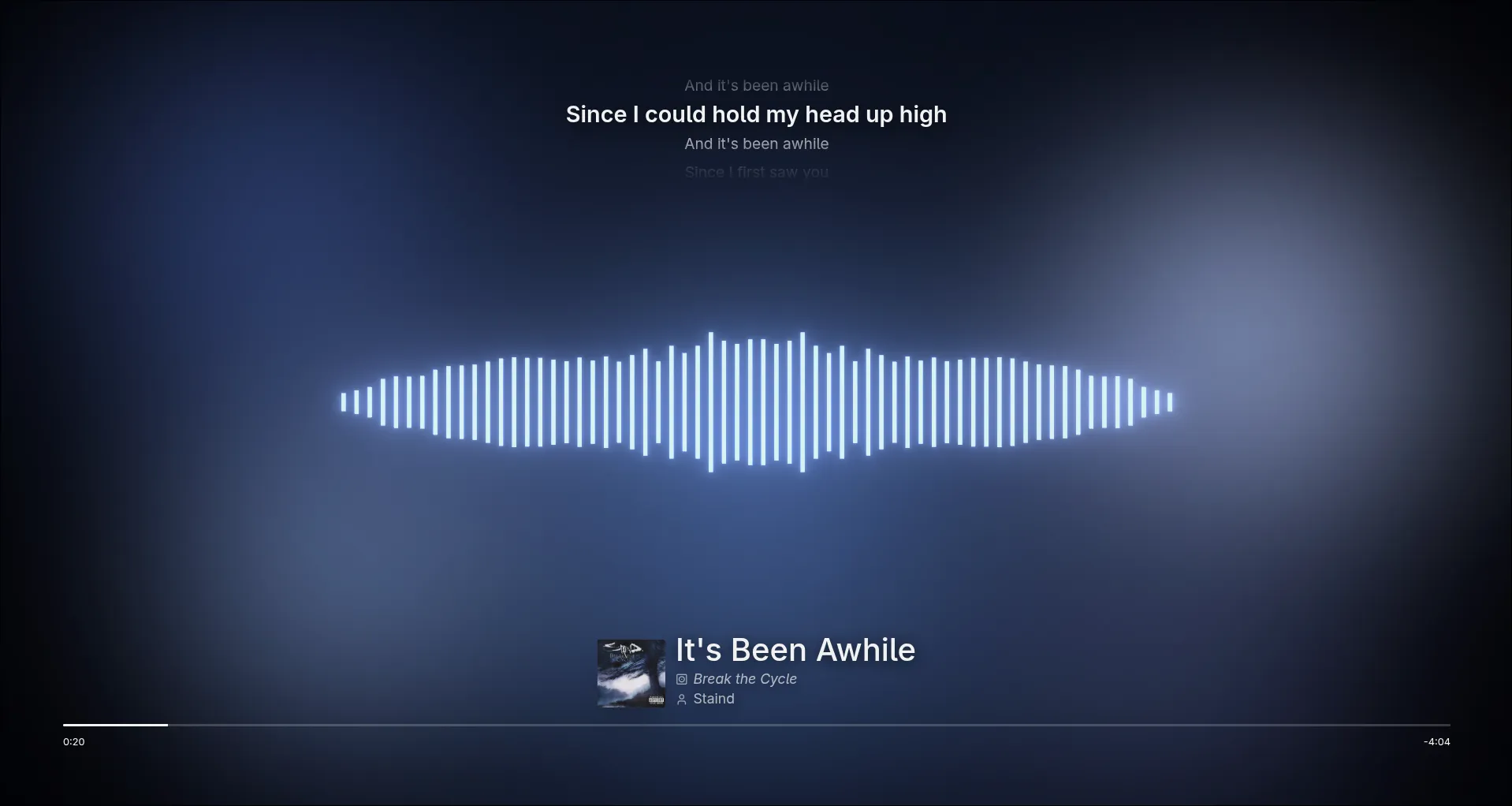

Turns whatever's playing in your browser into a real-time, color-reactive 3D visualizer.

Real-time FFT audio pipeline captures tab audio and drives frequency-reactive Three.js scenes at 60fps. Paired foreground/background scene architecture keeps visuals choreographed together instead of mixed-and-matched. Album artwork is color-extracted in real time and eased into the active visualizer's palette.

Under the hood

  • Audio pipeline: tab audio is captured via getDisplayMedia (requiring a user-gesture-triggered share action and HTTPS in dev), piped through a Web Audio AnalyserNode, and grouped into bass/mid/treble bands for onset detection — all client-side, since Spotify deprecated its own audio-analysis endpoints for new apps in late 2024.
  • Scene architecture: each visualizer is a matched foreground/background pair rather than independently swappable layers, so both halves react to the same audio and palette data in sync ('reactive parity'). The first scene, MinimalBars, pairs a bloom-postprocessed Three.js bar visualizer with a CSS blob background animated by a hand-rolled JS RGB-lerp loop, since CSS transitions can't interpolate gradients on their own.
  • Palette system: node-vibrant extracts colors from album art, cached in a module-level store read via useSyncExternalStore so new palettes are derived during render rather than pushed through effect-driven setState. Colors then propagate to every palette-reactive element (blobs, bar glow) on a shared 800ms eased transition, so the whole scene re-themes as one unit rather than piecemeal.
  • Rendering performance: AudioContext is lazily instantiated via a useState initializer to avoid recreating it per render, and all per-frame updates (bar heights, color lerps) mutate refs/DOM directly inside requestAnimationFrame instead of going through React state — keeping the animation-critical path off the render cycle. Missing Three.js material disposal in cleanup was the source of an early ~600MB memory leak, now fixed.
  • Auth and metadata: Spotify's PKCE flow runs entirely client-side (no backend secret to hold), with silent refresh built in from the start rather than retrofitted, since access tokens expire hourly. Now-playing data is polled to drive both the overlay and the LRCLIB lyric sync, which parses LRC timestamps and tracks the active line against playback position.

Limitations

  • Tab-audio capture is reliable on Chrome/Edge desktop only; macOS can't share system audio (tab audio only), so a fallback message is shown rather than silently failing.
  • Spotify app runs in Development Mode, capped at a small manual user allowlist — acceptable for a portfolio piece, not meant to scale to public users.
  • Spotify's /audio-analysis and /audio-features endpoints were deprecated for new apps in late 2024, so all beat/onset detection is derived client-side from live FFT data rather than Spotify's own analysis.
  • TODO — behavior when no track is playing / no lyrics are found on LRCLIB.
  • TODO — mobile fallback and settings panel are still on the roadmap, not yet shipped.

Why I built this

This came right off the back of a CMA (insurance) project, where I found I really enjoyed front-end work more than I expected. At the same time, I’d been wanting a music visualizer for a while. I’m big into music, and it felt like a natural project to build for myself rather than for a client.

The album-art color extraction was inspired by Apple’s lock screen display, but I wanted to push in the opposite direction: less subtle, more forefront. Instead of a quiet background tint, the palette drives the visualizer itself.
